Livestock Water Trough (405mm Deep)

Description / Livestock Water Trough (405mm Deep)

Suitable for all livestock, our best selling water trough is manufactured from 1.5mm flat steel, sheet folded, welded and then fully galvanised to BSEN ISO 1461. It features a rolled top for added strength and stability and comes with a drain plug and bung as standard.

Options available

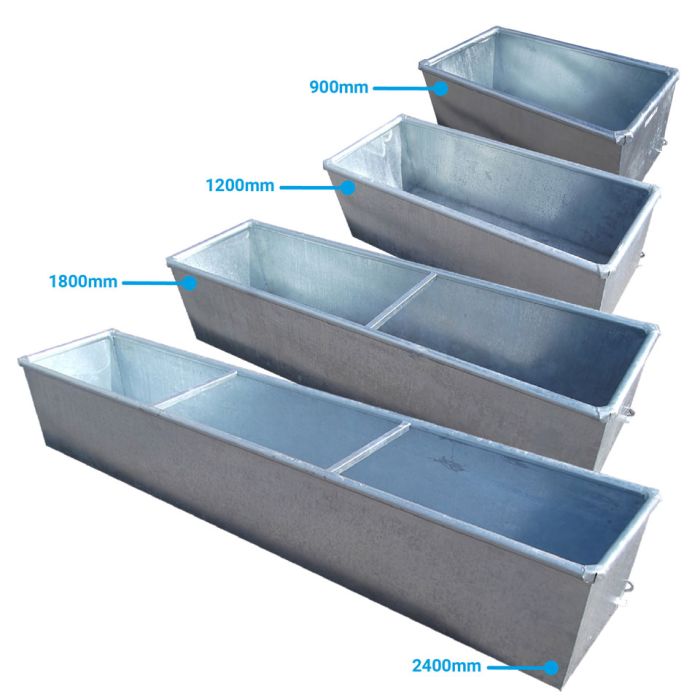

Our livestock water troughs are available in the following sizes: (all models are 457mm (18”) wide and 405mm (16”) deep).

600mm (1.96ft) long, 109ltr (23 gallons) capacity, 17.00kg - No horizontal cross brace
900mm (2.95ft) long, 163ltr (36 gallons) capacity, 24.80kg - No horizontal cross brace
1200mm (3.93ft) long, 218ltr (48 gallons) capacity, 30.95kg - No horizontal cross brace
1800mm (5.9ft) long, 327ltr (72 gallons) capacity, 43.76kg - One horizontal cross brace
2400mm (7.87ft) long, 436ltr (96 gallons) capacity, 56.82kg - Two horizontal cross braces

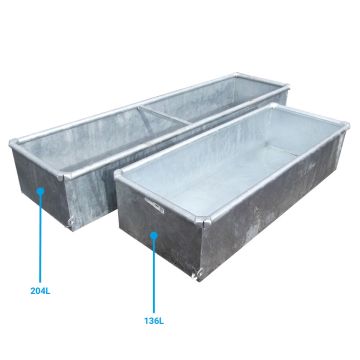

For sheep we also stock the lower 267mm (10.5') deep troughs in four sizes. For dairy herds or where larger volumes of water are required, such as allotments, we also stock 600mm deep troughs in various lengths.

Features

Roll top trough for added strength & stability
Drain plug & bung come as standard
Manufactured in 1.5mm flat steel sheet folded, welded and then galvanised to BSEN ISO 1461
Curved internal lip reduces the chance of livestock getting leverage to move the box
Three brackets hold service box firmly in place. Service box can be fitted at either end or central, ideal when separating paddocks. (Service box available separately).

Optional extras

Effectively support a standard galvanized water trough to the correct height for livestock to drink from. For our Livestock Water Trough (405mm Deep) we recommend our 460mm Concrete Trough Supports, 2 supports for up to 1800mm (5.9ft ) troughs and 3 supports for 2400mm (7.87ft) up to 3050mm (9.84ft) troughs.

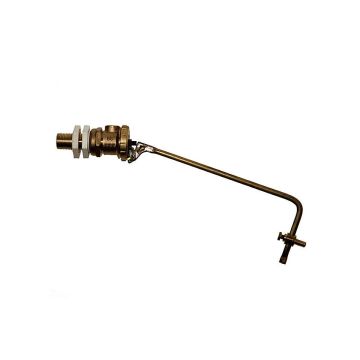

Service box for housing the ball valve assembly is available separately. Service box can be installed centrally or end fitted. Three wrap round brackets provide a strong fitting.
